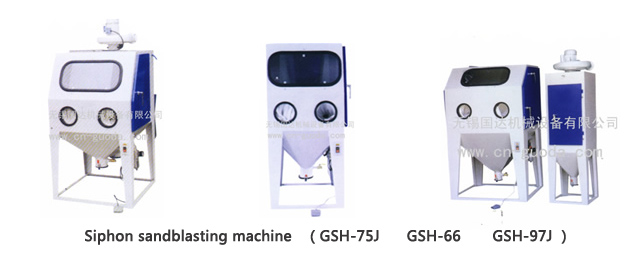

Product Name:Siphon Blasting Machine

Siphon Blasting Machine


Features:

1. GSH-75J, GSH-95J type sandblasting machine with dust collector with one, save floor space, reduce dust pollution.
2. GSH-66, GSH-97 dust collection bag configuration, small footprint.
3. GSH-66J, GSH-97J dust collector configuration, for a long time processing, and can reduce the dust pollution.
This model to siphon good sealing, easy replace the sand material the sand material automatically be recycled and used, simple operation and maintenance.
5 window is made ​​of tempered glass, the inner surface with a layer of ordinary glass, a very clear line of sight, the replacement is very convenient.
Native powder coating to achieve beautiful, durable use requirements.
7 The machine can be divided into two kinds of positive door or side door, gun racks and can be retrofitted to use more flexible.
8 sand material: alumina sand (corundum), silicon carbide (green silicon carbide, black silicon carbide), glass beads, walnut sand, resin sand, plastic pellets, the (nylon sand), ceramic beads, Fine steel ball , grit, stainless steel beads, aluminum beads.

Uses:

     Suitable for wire cutting, sandblasting of small molds, general metal and non-metal surface cleaning, appearances, etching and other small and medium-sized workpieces.



Technical Data:

Type
workroom
space

MM
work entrance size(MM
occupied
area(
MM
collect
dust
power
air compressor
power

GSH-75J
750*550*680
450*580
800*800*1450
0.5HP
5-10HP
face /side
opening
door
GSH-95J
950*550*750
450*650
1000*1000
*1650
0.5HP
5-10HP
face /side
opening
door
GSH-66
600*600*650
500*550
650*900*1350
0.5HP
5-10HP
face /side
opening
door
GSH-97
900*760*750
650*660
1060*1160
*1650
0.5HP
5-10HP
face /side
opening
door
GSH-66J
600*600*650
500*550
1200*900
*1850
0.5HP
5-10HP
face /side
opening
door
GSH-97J
900*760*750
650*660
1500*1160
*1650
0.5HP
5-10HP
face /side
opening
door


Application:

    Cleaning of Linear Cutting Machine, small mould, normal metal and nonmetal surface, medium or small work piece blasting, such as etched parts.

    Note: All the pictures or parameters are only for reference, if you want to buy, please go to our finished products.
