Introduction:

  Surface hardening for the purpose of processing shot blasting machine called strengthening shot blasting. Strengthen the kind of shot blasting cleaning shot blasting machine similar to, but really the process parameters and structural requirements aspects have special requirements different from ordinary shot blasting machine.

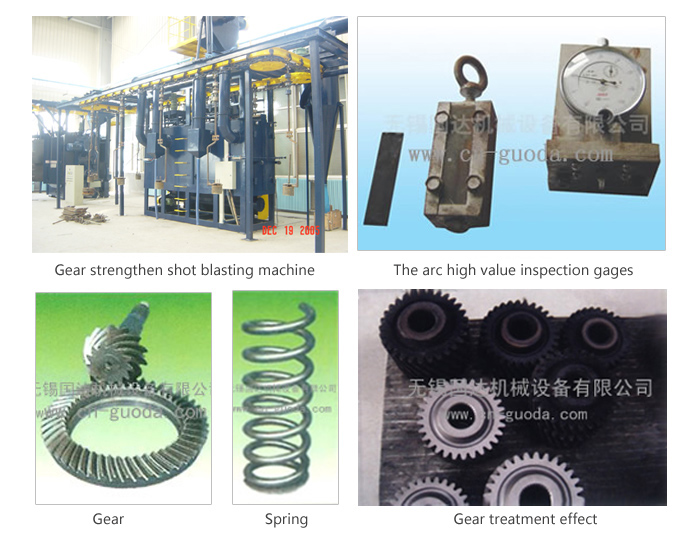

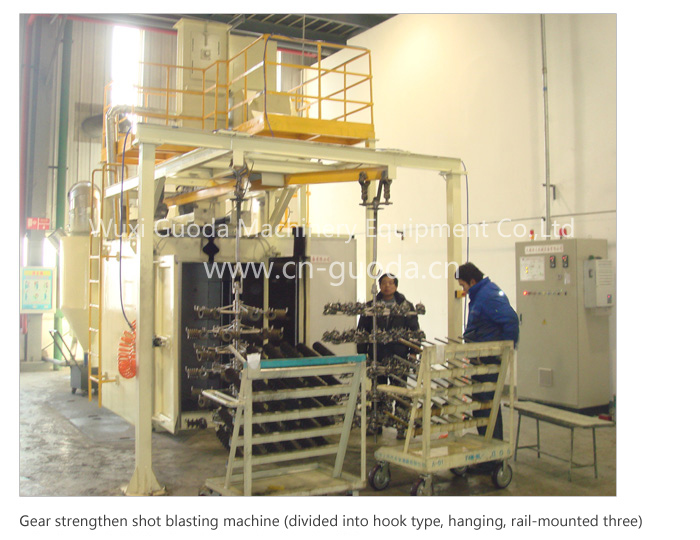

Gear strengthen shot blasting machine:

(1) Hook
Working methods: electric hoist (or ring chain hoist) hanging and transfer of the workpiece, the workpiece is hanging on a dedicated spreader.
Applications: all kinds of gears and gear shafts, to strengthen requirements are not very high.
Advantages: the production of large, easy to operate.
Technical parameters: the blast wheel Power 11 to 18.5kw range of workpiece shot blasting φ800 to 1200 × 1000 ~~ 1800mm.

(2) catenary
Working methods: the workpiece traveling with hanging chain, the workpiece hanging in the dedicated spreader.
Applications: all kinds of gears and gear shafts, strengthen the the arc high value and stress requirements.
Advantages: the strengthening effect of uniform enhancement value.
Technical parameters: 18.5kw of the the blast wheel power 11 to the workpiece shot blasting range φ200 to 300 × 600mm.

(3) multi-position rotary
Working methods: the workpiece on the planet small turntable, with the large turntable for the revolution.
Applications: all kinds of gears and gear shafts, strengthen the the arc high value and stress requirements.
Advantages: uniform strengthening effect, enhancement value, small footprint.
Technical parameters: 18.5kw of the the blast wheel power 11 to the workpiece shot blasting range φ200 to 500 × 600mm. range of

applies:

especially auto transmission gear, rear axle gear. The enhanced tooth root to produce -800 ∽-1000Mpa residual stress, fatigue strength and service life of the gear to improve exponentially.

Note: All pictures, data is only for reference, mainly in kind.
