Working methods:

  The workpiece into the rubber track roller operator shut down the door, shot blasting began. Efficient powerful shot blasting the pellets high-speed projectile to the surface of the workpiece, the workpiece can be cleaned up completely evenly.

Applications:

1 die castings, precision castings, precision forgings cleaning, light decoration.
2. Removal of the surface oxide processing parts, castings, forgings.
3 springs strengthening.
4 fasteners (Dacromet painting) rust and pre-treatment.






Pros:

Apply to small casting, forgings, non-ferrous metal casting sand, rust, descaling and surface hardening.
2 low noise.
3 small footprint.
Stable, safe and reliable.



Technical parameters:

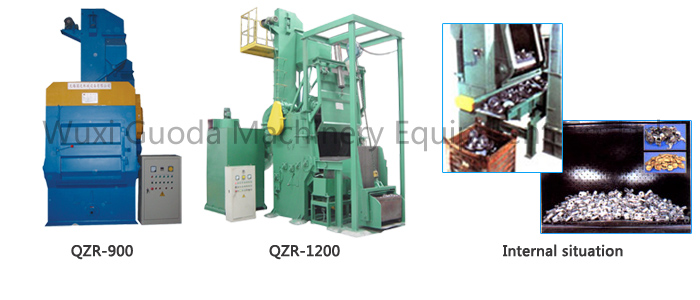

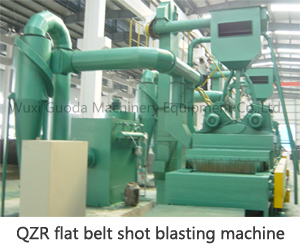

	QZR—900	QZR——1200		QZR flat belt shot blasting machine
		A	B
Overall (mm)	1300*1210*3650	4590*3200*5105	2410*2250*4750	4800*2670*5500
Weight(kg)	About 1980	About 3000	About 2980	About 11800kg
Clean-up weight (kg)	10	10	10	100kg/m
Charging the maximum weight (kg)	200	400	400	Through the cross-section1000*100mm
Shot Quantity	1	I	2	4
Shot device power(kw)	7.5	1.5	7.5	7.5
Blast wheel and drag	Direct-coupled or belt drag Optional	Direct-coupled or belt drag Optional		Direct-coupled
Quantity of shot blasting(kg/min)	100	250	100*2	100*4
Steel shot for the first time to fill in the amount(kg)	75~125	200~300	200~300	600
Total power(kw)	11.6	29.45	21.7	45.4
		Automatic cutting mechanism is optional

Note: All pictures, data is only for reference, mainly in kind.
