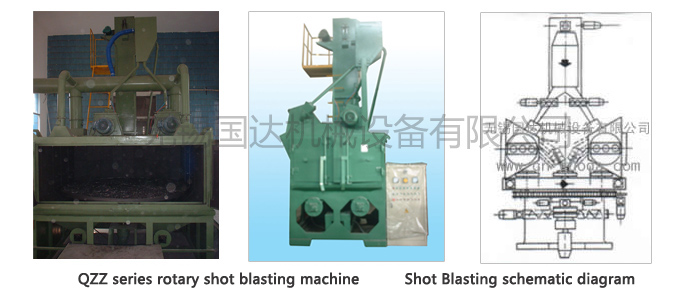

Product Name:QZZ series rotary shot blasting machine



Working methods:
The workpiece on the shot blasting Indoor turntable, closed the door after shot blasting, shot blasting, the pellets high-speed projectile to the workpiece to be shot blasting surface, open studio time to remove the workpiece can. A continuous way, on one side, one side under. (Underside are going to throw the workpiece will have to stand up).


Bpplicable Range:
Turntable shot blasting machine suitable for small and medium difficult hanging flat surface cleaning afraid collision parts, especially for as long as the single-sided shot blasting workpiece.


Advantages:

1. native foundation pit installation costs, easy maintenance;
2. Mainly used to be afraid of the collision of the workpiece cleanup;

QZZ series turntable shot blasting machine technical parameters:

QZZ-1200

QZZ-1500

QZZ-2000

QZZ-2500

(Continuous)

Machine Dimensions  mm

3300x2550x4660

11000x3000x6400

28100x3000x6800

36500x3100x4800

The total weight of the machine    kg

3200

3800

3900

5800

Turntable diameter      mm

1200

1500

2000

2500

Turntable rotation speedr/min

2.4

1.53

1

0.06-0.3

Clean up the maximum size of the workpiece      mm

Φ1000x300

Φ1500x500

Φ1900x200

Φ500x150

The shot blasting Model, power     kw









Total power        kw

21.55

22.1

27.75

36.67
