Applications:
Than with the hook shot blasting machine the catenary through shot blasting machine, production capacity, high degree of automation, production lines and processes before and after, applicable to a variety of small and medium-sized parts, mass production.
Job nature of a continuous, step two, the number of single station, the duplex bit, multi-position shot station.
Operating mode:
The workpiece suspension hook, for circular motion by catenary conveyor, by cleaning the room to the front door into the back door. The step-by-step system or continuous manner, by throwing the workpiece rotation and movement control mode for fully automatic loading and unloading can be manually, and also the help of institutions such as balance suspended.
Uses:
Applicable to various small parts of large quantities. The workpiece can single piece hanging, can also multilayer hanging, depending on the size of the workpiece, production. Such as industry-scale production of cars, motorcycles, aluminum die casting, cleaning, finishing, clean-up gear, strengthening treatment.
1, high production efficiency, stable shot blasting. QZG-T30/T50/T120 catenary hanging by type QZG-T200/T300/T500 Catenary hanging by type Machine Dimensions mm 750x4000x4920 1200x5000x6250 18280x5830x6800 11000x10000x6000 The total weight of the machine T 8.8/14/10.2 20.8 Pit Usually have Usually have Hook number 15/8/9 14/29/12 Hooks maximum load kg 30/50/120 200/300/500 Hooks maximum load kg 30/50/120 200/300/500 Blasting Room Sizemm The shot blasting Model, power kw Φ420 Φ420 Note: The number of station, the length of the catenary number of hook, step away from the hook, the actual working conditions depending on the customer equipment layout design alone.
Advantages:
2, PLC control with automatic, automatic monitoring functions, equipment reliability.

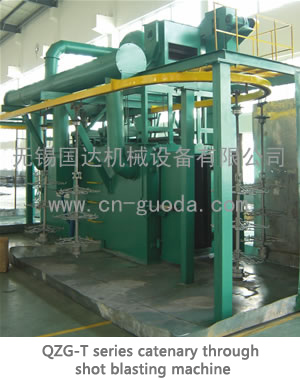

QZG-T series catenary through shot blasting machine technical parameters:
（Light rail stepper）
(Heavy rail the stepper)
8300x5700x5800
17516x5721x6500
All pictures, data for reference only, mainly in kind.
